Ebyte OEM/ODM ME31-AXXX8000 8DI Analog input Modbus gateway support network module ethernet io module

 6,314.40

SKU: 5707810017638 Category:

Description

Product Description

Ebyte OEM/ODM ME31-AXXX8000 8DI Analog input Modbus gateway support network module ethernet io module

Specification

parameter name
parameter value
Operating Voltage
DC8~28V
Power indicator
blue LED indication

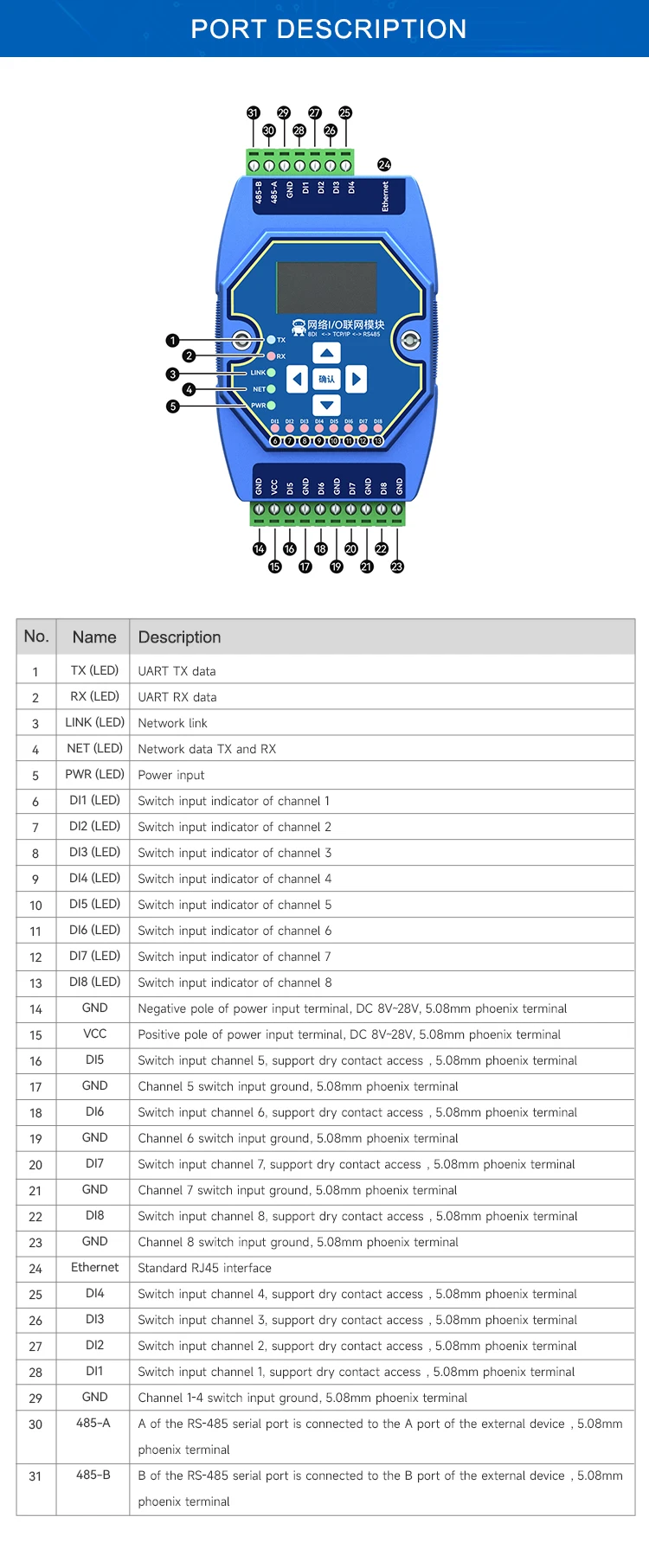

Communication Interface
RJ45, RS485
baud rate
9600bps (customizable)

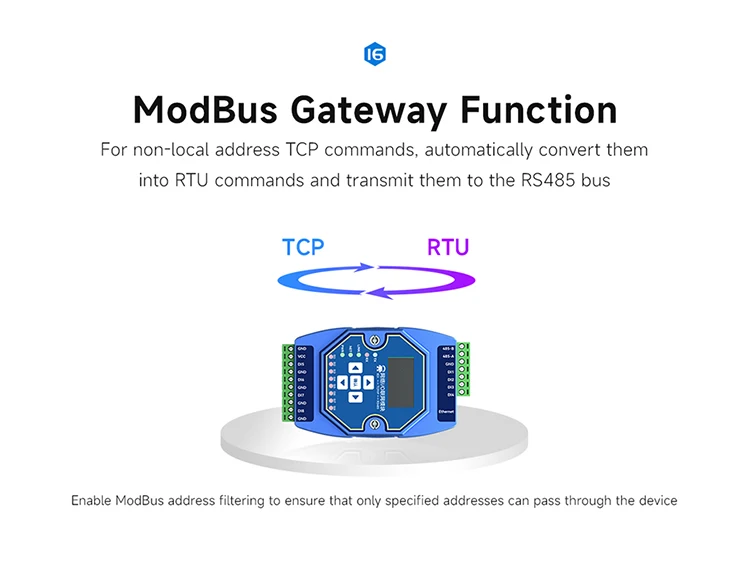

Protocol
Standard Modbus TCP, Modbus RTU protocol
Device address
Can be modified by Modbus commands and the host computer

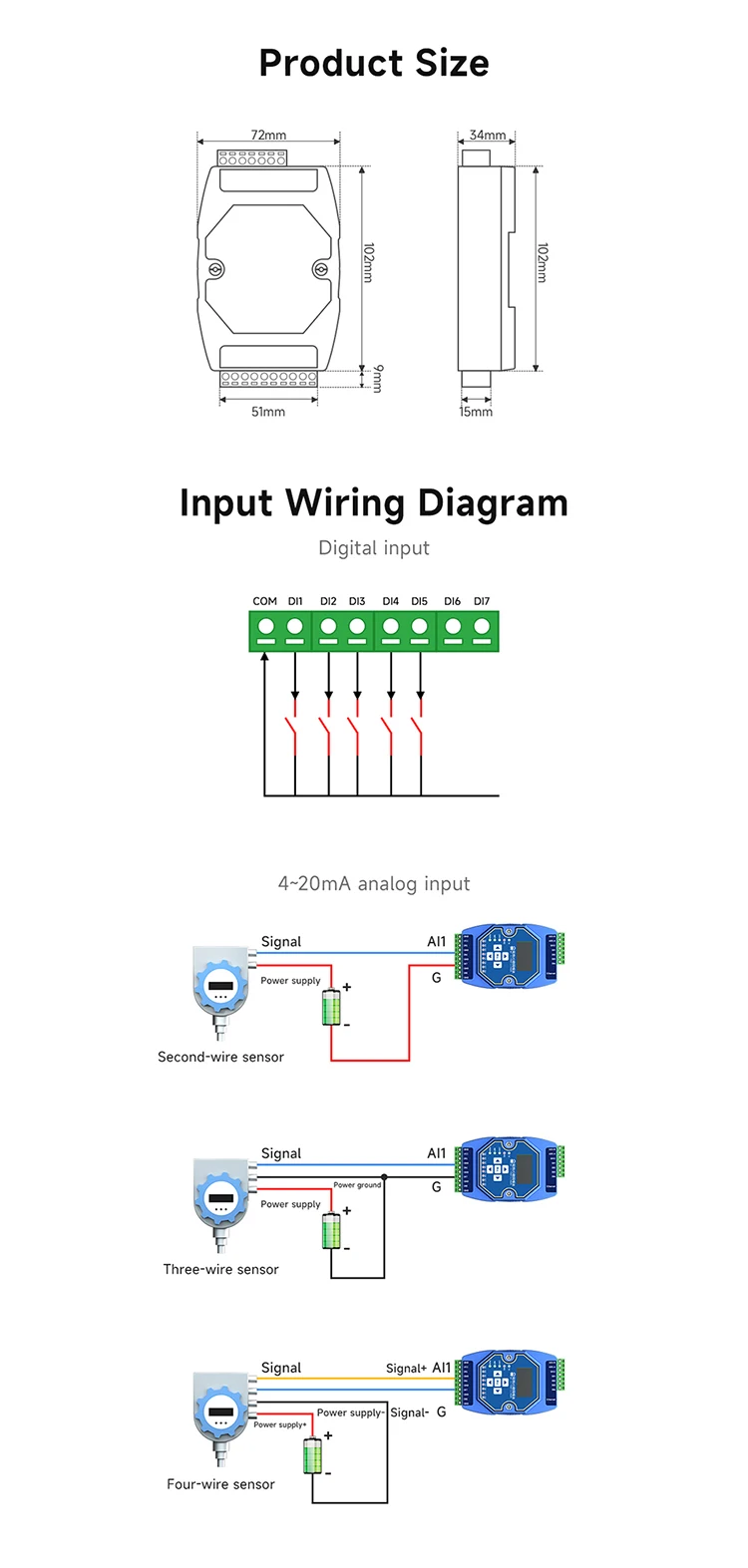

Product Size
121mm * 72mm * 34mm (L*W*H)
Collection frequency
1kHz
input instructions
LED screen display
output indication
Red LED indication
product weight
135 ± 5 g
Working temperature and humidity
-40 to +85℃, 5% to 95%RH (non-condensing)
Storage temperature and humidity
-40 ~ +105℃, 5% ~ 95%RH (non-condensing)
Installation method
Rail installation
Operating mode
TCP server (up to 4 client access)
Native IP
192.168.3.7
native port
502
subnet mask
255.255.255.0
gateway address
192.168.3.1
DHCP
closure
Native MAC
Determined by the chip (fixed)
target IP
192.168.3.3
destination port
502
DNS server
114.114.114.114

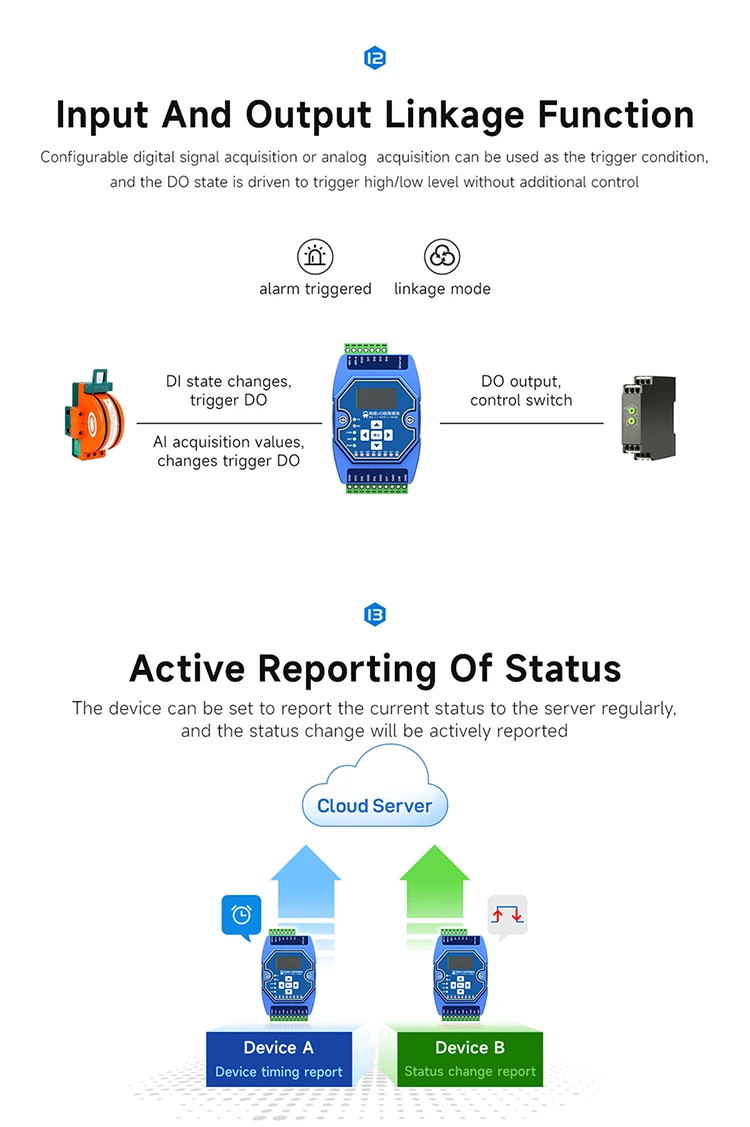

Active upload
closure
baud rate
9600bps (8 types)
Check method
None (default), Odd, Even
data bits
8
stop bit
1
Modbus master-slave
Slave
address
1

Additional information

Specification

ME31-AXXX8000
