Description
Product Description

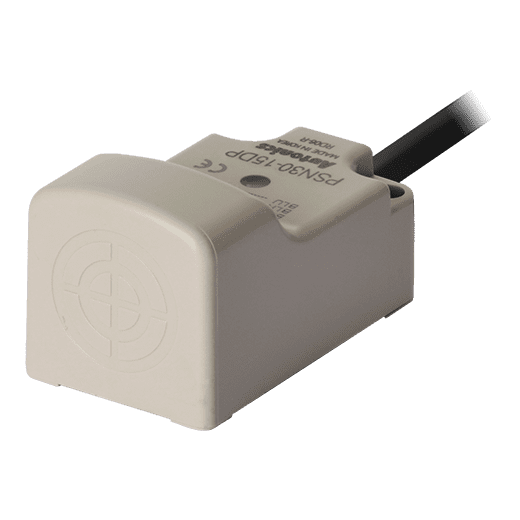

The PS/PSN series rectangular inductive proximity sensors feature excellent noise immunity with a specialized sensor IC developed by Autonics. Various sizes are available for application in diverse environments.
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side size | Frame size 30mm |
| Sensing distance | 15mm |
| Standard sensing target | 45×45×1mm(iron) |
| Response frequency | 200Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Sensing type | Standard type(front sensing type) |
| Material | Heat-resistant ABS |
| Protection structure | IP67 |
| Approval |  |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | Approx. 111g |
