Description

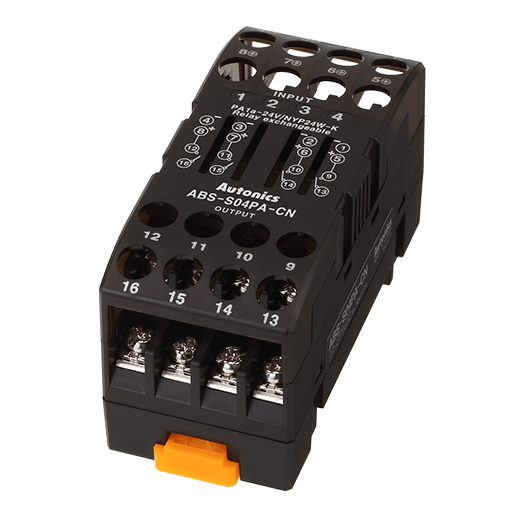

The ABS series relay terminal blocks are compatible with popular relays from various brands. Rated load voltage and current is supported up to 10 A depending on the model, allowing application in various and high powered loads.
The units are ideal for operating various loads using output signals from PLCs. The LED indicator allows users to quickly identify operation and connection status.
The terminal blocks can be easily mounted with DIN rail locks or screws/bolts. The ABS series is available in 1-point / 4-point / 16-point / 32-point relay models.
| Rated voltage | 24VDC  ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 3A, 30VDC 3A |
| Current consumption | ≤ 8mA |
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
| Number of relay points | 4-point |
| Indicator | Operation indicator: Blue LED |
| Applicable cable | AWG22-16(0.30 to 1.25mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass |
| Accessories | Jumper bar: 2(Model:JB-7.62-04) |
| Approval |   |
| Weight | Approx. 104g(approx. 68g) |
