Description

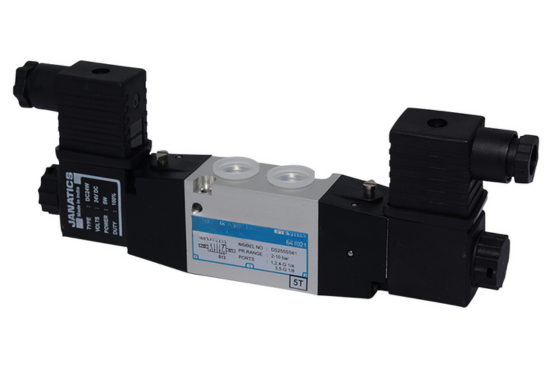

A high-performance, compact pneumatic valve featuring dual solenoid actuation, the Janatics DS255SS61 series is ideal for precise directional control of compressed air in automation systems.
Key Features & Specifications:
- Valve Type: 5/2 way pneumatic double solenoid
- Actuation: Dual coil (no spring return) for electrically controlled shifting in both directions (A to B and B to A)
- Port Size: 1/4″ (G1/4 thread)
- Flow Rate: Approx. 1,200 LPM (cubic), suited for dry, filtered, and lubricated compressed air applications
- Material Construction: Aluminium body with seals and components in NBR (nitrile), brass, SS316, PTFE, Acetal, PBT, or zinc based on variant
- Voltage Variants:
- DS255SS61‑A – 220 VAC AC coil variant
- DS255SS61‑W – DC coil variant (typically 24 V DC)
- Operating Pressure Range: 0–8 bar (≈ 0–10 bar depending on vendor specs)
- Ambient Temperature: Operates effectively between 5 °C and 60 °C
- Features: Includes manual override option, compact profile, and designed for manifold or individual mounting
Typical Applications:
- Industrial automation & control systems
- Manufacturing equipment
- Packaging machinery
- Textile and general engineering pneumatic circuits
Suitable for environments where reliable switching and precise directional air control are required.
Why Choose This Model?
- Precise bidirectional switching thanks to dual-solenoid actuation
- Robust, lightweight construction for long-term reliability
- Flexible mounting options and compatibility with manifold systems
- Excellent for environments requiring fast response and repeatability
