Description

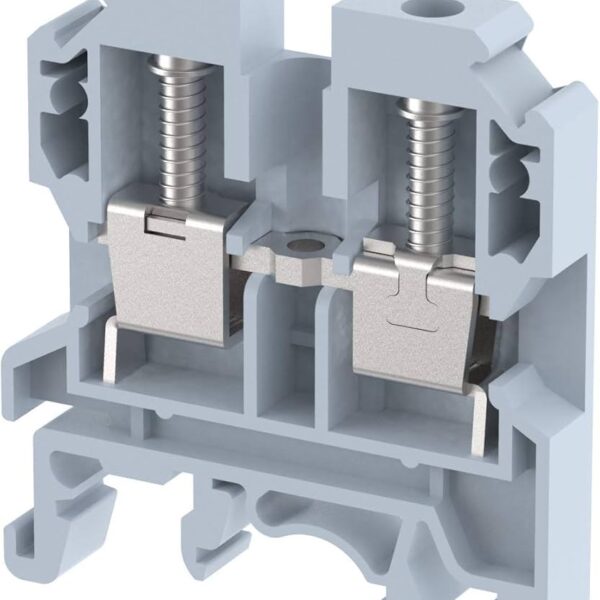

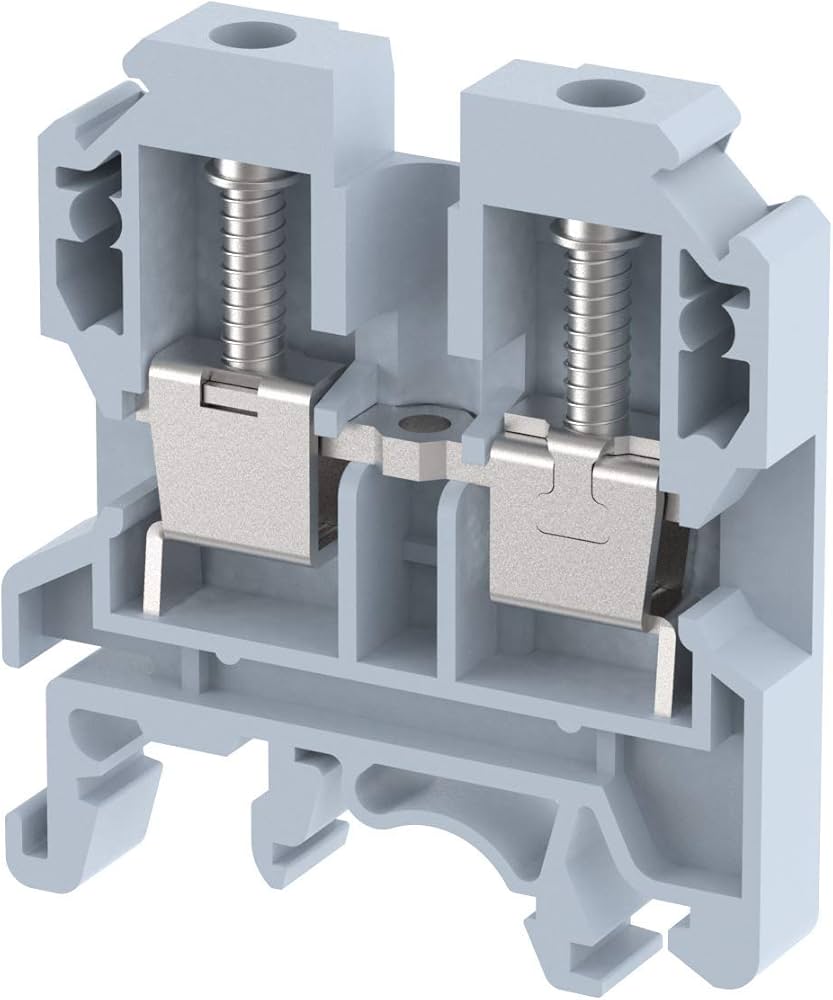

The KUT6 is a robust feed-through terminal block manufactured by Elmex, designed for secure and reliable electrical connections in industrial applications.
Key Specifications
- Rated Voltage: 800 V (IEC), 600 V (UL/CSA)
- Rated Current: 41 A
- Conductor Size:
- Solid: 0.5 mm² to 10 mm² (20–8 AWG)
- Stranded: 0.5 mm² to 6 mm²
- Clamping Technology: Screw connection
- Material:
- Housing: Polyamide 6.6 (Gray)
- Clamping Material: CRCA (Cold Rolled Close Annealed)
- Mounting Type: DIN rail (TS35/7.5, TS35/15, TS32, TS15)
- Dimensions: 46.4 mm (H) x 42.5 mm (W) x 8 mm (D)
- Weight: Approximately 1.45 kg per 100 units
- Torque: 0.8 Nm
- Pollution Degree: 3
- Overvoltage Category: III
- Compliance: IEC 60947-7-1
Features
- Versatile Conductor Compatibility: Accommodates both solid and stranded wires, providing flexibility in various wiring scenarios.
- Durable Construction: Polyamide 6.6 housing ensures high mechanical strength and resistance to environmental factors.
- Secure Connections: Screw connection method offers a reliable and stable electrical contact.
- DIN Rail Mounting: Easily mounts on standard DIN rails, facilitating quick and secure installation.
- Compact Design: Space-efficient dimensions suitable for high-density installations.
