Meanwell Power Supply LRS-100-12

Description

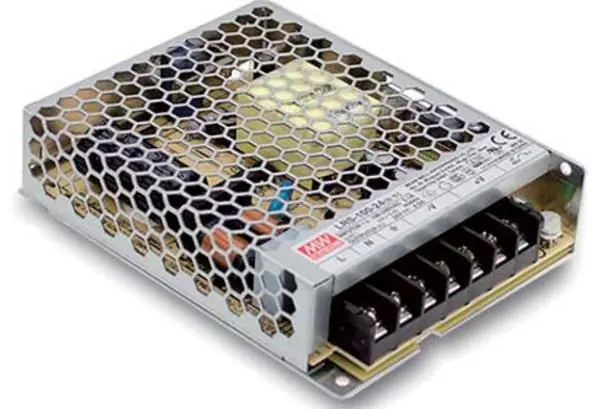

The Mean Well LRS-100-12 is a high-performance enclosed AC-DC switching power supply designed to deliver a stable 12V DC output at up to 8.5A (100W). Its compact 1U low-profile design (30mm height) makes it ideal for space-constrained applications in industrial, automation, and household environments.

Key Features:

• Output Voltage: 12V DC
• Output Current: 8.5A
• Power Output: 100W
• Input Voltage Range: 85–264VAC / 120–373VDC
• Efficiency: Up to 88%
• Operating Temperature: -30°C to +70°C
• Cooling Method: Convection (no fan required)
• Protections: Short Circuit, Overload, Overvoltage
• Certifications: UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
• Dimensions: 129 x 97 x 30 mm (L x W x H)
• Weight: 340g

Applications:

Ideal for use in:

• Industrial automation machinery
• Control systems
• LED lighting
• Household appliances
• Electronic instruments and equipment

Advantages:

• Compact Design: The 1U low-profile design allows for easy integration into space-constrained environments.
• High Reliability: Built to withstand 5G vibration and operate at high temperatures, ensuring durability in demanding conditions.
• Energy-Efficient: Low no-load power consumption (<0.3W) helps meet global energy efficiency standards.

For more information or to purchase the Mean Well LRS-100-12, please visit the product page.
