Description

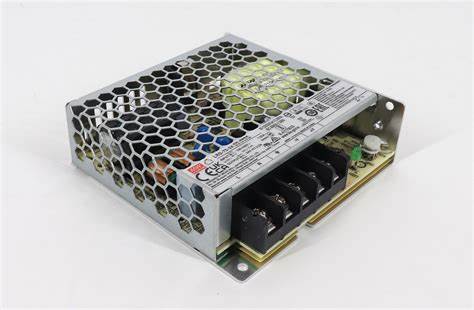

The Mean Well LRS-75-24 is a high-performance, enclosed AC-DC power supply that delivers a 24V DC output at 3.2A, providing a total power output of 76.8 watts. Designed for efficiency, durability, and compact integration, this unit is ideal for a wide range of industrial and electronic applications.
Key Features:
- Input Voltage: 85–264VAC / 120–373VDC (universal input)
- Output Voltage: 24V DC
- Output Current: 3.2A
- Power Output: 76.8W
- High Efficiency: Up to 90%
- Low No-Load Power Consumption: <0.3W
- Compact Dimensions: 99 x 97 x 30 mm
- Cooling Method: Convection cooled (fanless design)
- Protections: Short circuit, overload, overvoltage, overtemperature
- Certifications: UL, CE, TUV, EAC, RoHS compliant
Applications:
- Factory automation systems
- Industrial control panels
- Security and surveillance equipment
- LED lighting and signage
- Communications and test equipment
Built with quality and reliability in mind, the LRS-75-24 features a robust metal enclosure, long-life electrolytic capacitors, and full protection mechanisms. Its energy-saving design and wide operating temperature range make it a dependable choice for professional installations.
