Description

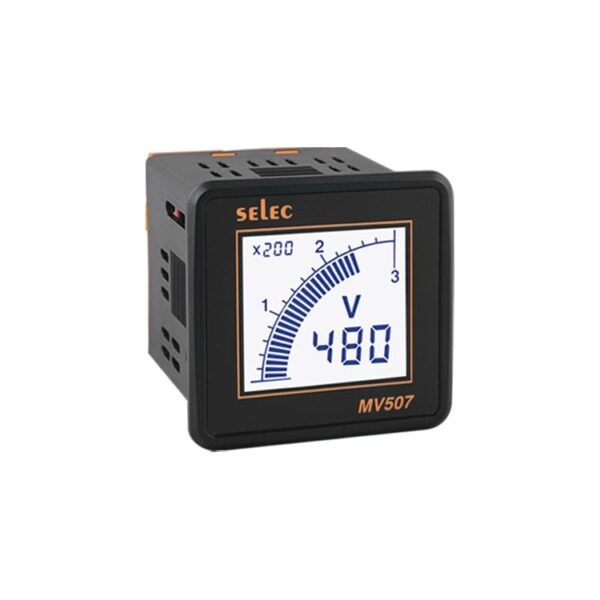

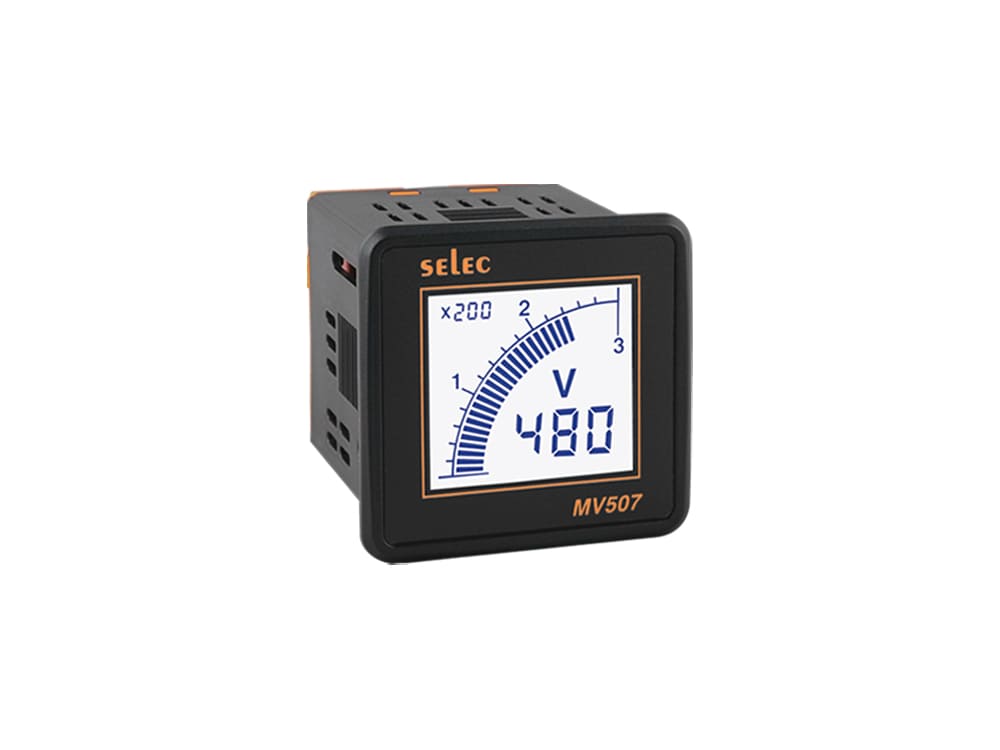

Selec MV507-230V-CE Digital Voltmeter is a reliable and compact single-phase voltage monitoring device designed for accurate voltage measurement in electrical systems. It features a clear LCD display along with a bar graph representation for easy visual interpretation of voltage levels. Operating at 230V AC, this voltmeter is ideal for use in panels, control systems, and industrial applications where real-time voltage monitoring is essential.
Key Features:
- Single-phase digital voltmeter
- LCD display with bar graph voltage representation
- Voltage input: 230V AC
- Compact design for panel mounting
- Ideal for industrial and commercial electrical monitoring
Product Description
- 1 phase 2 wire systems
- 50 to 480 V measurement
- Accuracy of ± 0.5% of F.S
- 3 digit LCD display with analog style bar graph
- Panel mount
- Supply voltage of 240V AC ±20% , 110V AC ±20%
| Display Type | LCD with Backlight & Analog Style Bargraph Indication |
| Display Configuration | 3 Digits |
| Electrical Connection | 1Ø – 2W |
| Accuracy | ±0.5% of Full Scale Over Rated Operating Condition |
| Measuring Range | 50 – 480V AC (516V Max) |
| Supply Voltage | 240V AC ±20% , 110V AC ±20% |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS & UL |
