Description

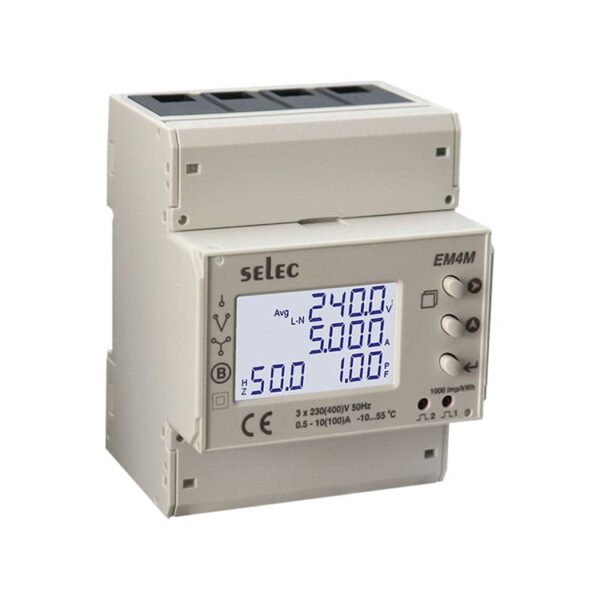

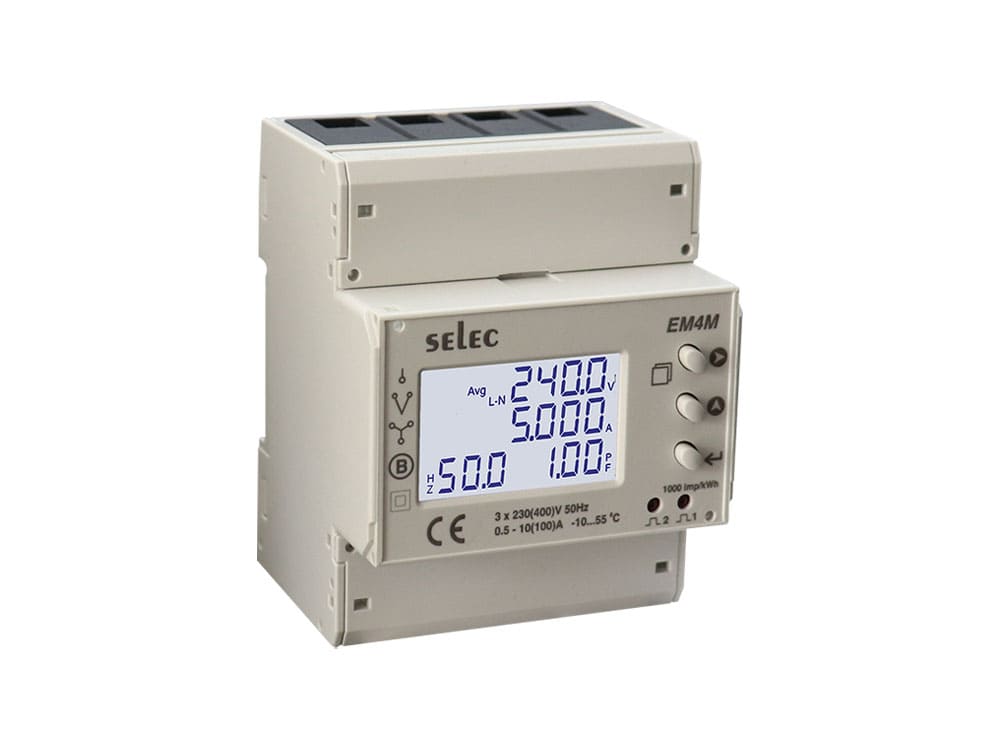

Product Description
- Direct current measurement up to 100A, Dual-Input measurement
- Compatible with 1 phase 2 wires, 3 phase 3 wires, 3 phase 4 wires systems
- 85 to 285V (L-N), 120 to 494V (L-L) measurement , Self Supplied
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
- Two pulse outputs configurable for Import/Export Energy measurement
- RS485 Modbus communication
- CE Certified
| Display Type | LCD with Backlight |
| Display Configuration | 1 Row of 4 Digits, 2 Rows of 7 Digits |
| Electrical Connection | 1Ø – 2W, 3Ø – 3W, 3Ø – 4W |
| Type of Output | Two Pulse Outputs |
| Communication Protocol | RS485 and MODBUS RTU |
| Features | D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi – directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent), Max-Demand Power |
| Power Consumption | 4VA Max |
| Input Current Range | Ib: 10A (Min – 0.5A, Max – 100A) |
| Supply Voltage | 85 to 285V AC (L-N), 120 to 494V AC(L-L),45 to 65Hz (Self-Powered) |
| Mounting Type | Din Rail |
| Size | 70 x 90mm |
| Certification | CE |
