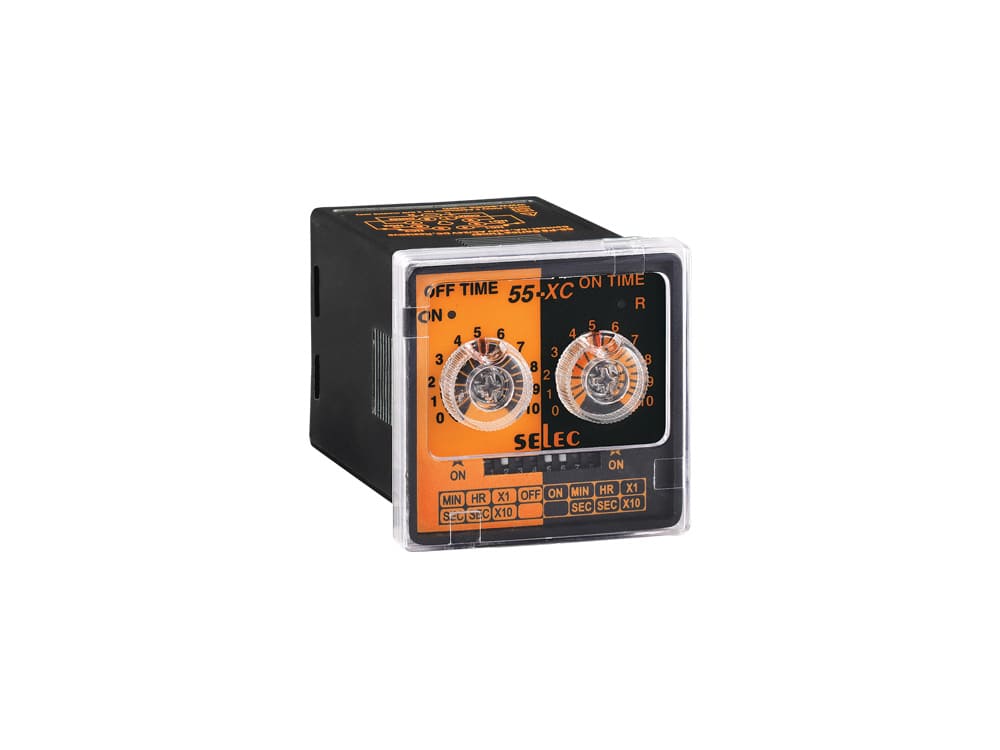

Name: Selec Make Plug in timer with cyclic function, 1sec to 10hr, 2 C/O, 20 to 240V AC &amp; 12 to 240V DC [55XC-P8]
SKU: 5862
Availability: InStock

Description

Product Description

6 time ranges, Universal supply voltage
LED indications : Power ON, Relay ON
Cyclic timer with unequal ON & OFF time
Compact size, CE certified, UL listed

Operating Modes	Cyclic With Unequal ON Time & OFF Time
Range	1 / 10 / sec / min / hr
Resolution	0.1 sec
Accuracy	Setting: ± 5% Of Full Scale, Repeat: ± 0.5% of 50ms (Whichever Is Greater)
Relay Contact	2 C/O SPDT
Contact Rating	5A @ 250V AC or 24V DC
Supply Voltage	20 to 240V AC, 12 to 240V DC
Size	48 x 48mm
Mounting Type	Plug / Panel Mount
Certification	CE , UL
