Description

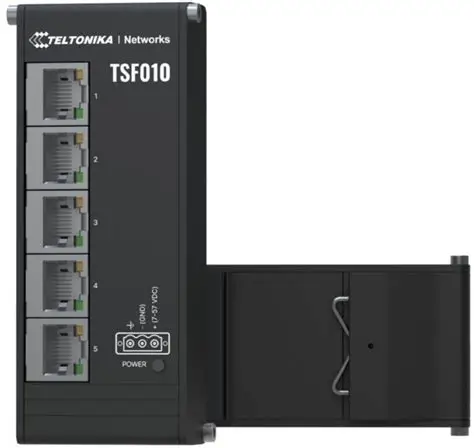

The Teltonika TSF010 is a compact, rugged, unmanaged Ethernet switch designed for demanding industrial environments. Its flat form factor and high durability make it ideal for installations in tight spaces such as cabinets, kiosks, terminals, automation panels, and other areas where space and reliability are critical.
Key Features
- Flat & lightweight design — The switch measures 113 × 28 × 50 mm and weighs only 142 g, allowing easy installation even in constrained spaces.
- Industrial-grade power flexibility — Supports an input voltage range from 7 VDC up to 57 VDC, with protections for overvoltage, reverse polarity, and surge events.
- Five 10/100 Mbps RJ45 ports — Provides five Ethernet ports (fast Ethernet) with auto MDI/MDIX, following common IEEE 802.3 standards.
- Good performance for its class — Features non‑blocking bandwidth up to 10 Gbps, a 2K MAC address table, 128 KB packet buffer, and support for jumbo frames (up to 9216 bytes) to help handle bursts and reduce overhead.
- Durable industrial design — Built with an anodized aluminum enclosure, integrated DIN‑rail bracket for easy mounting, and IP30 ingress protection.
- Wide temperature range — Operates reliably between −40 °C to +75 °C, suitable for harsh environments.
- Low power consumption — Idle consumption around 1 W, increasing to ~1.5 W under load.
