Description

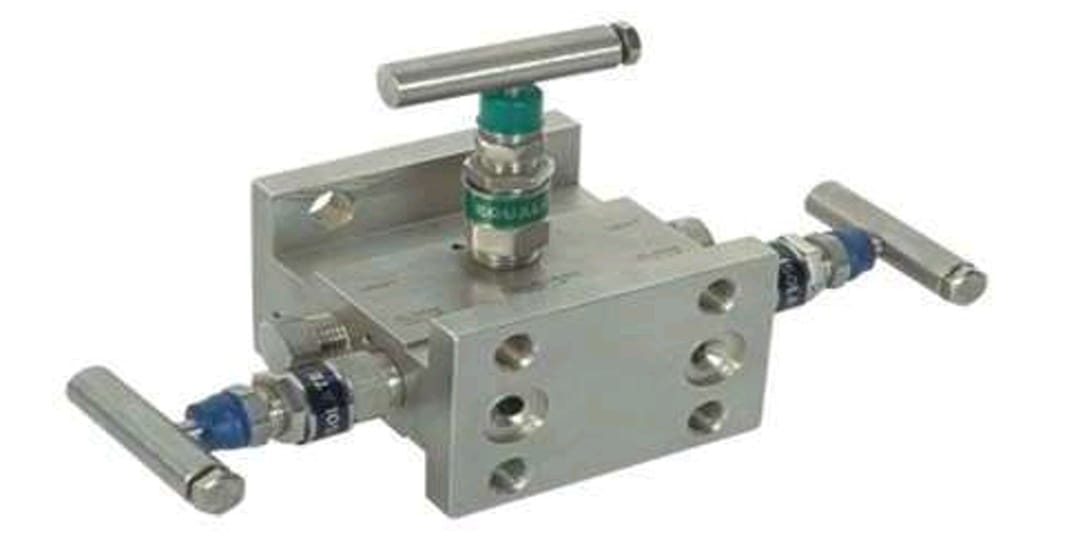

The 3 Valve Manifold H Type – 1/2″ Flanged Type is a precision instrumentation valve assembly used in differential pressure measurement systems and industrial process control applications.
This manifold consists of two isolation valves and one equalizing valve, allowing operators to isolate the high-pressure and low-pressure lines and equalize pressure between them during calibration or maintenance. The H-type design provides a compact and balanced configuration, ensuring stable pressure control and accurate readings.
The 1/2 inch flanged connection ensures secure installation and strong sealing when connected to industrial pipelines and instrumentation equipment.
Manufactured from high-quality stainless steel such as SS304 or SS316, the manifold offers excellent corrosion resistance, durability, and leak-proof performance in demanding environments.
Its robust construction and reliable valve mechanism make it ideal for oil & gas, chemical processing, power generation, and industrial automation systems.
⭐ Key Features
-
🔧 3-valve configuration (2 isolation + 1 equalizing valve)
-
⚙️ H-type manifold design for differential pressure applications
-
🔩 1/2″ flanged process connection for secure installation
-
🛡️ Durable stainless steel construction (SS304 / SS316)
-
🎯 Ideal for differential pressure transmitters and gauges
-
💧 Leak-proof valve sealing for reliable operation
-
🏭 Suitable for industrial instrumentation systems
-
🔧 Easy installation, calibration, and maintenance
🏭 Typical Applications
-
Differential pressure transmitter installations
-
Flow measurement systems
-
Pressure monitoring systems
-
Oil & gas instrumentation
-
Chemical processing plants
-
Power plants
-
Water and wastewater treatment facilities .
