Description

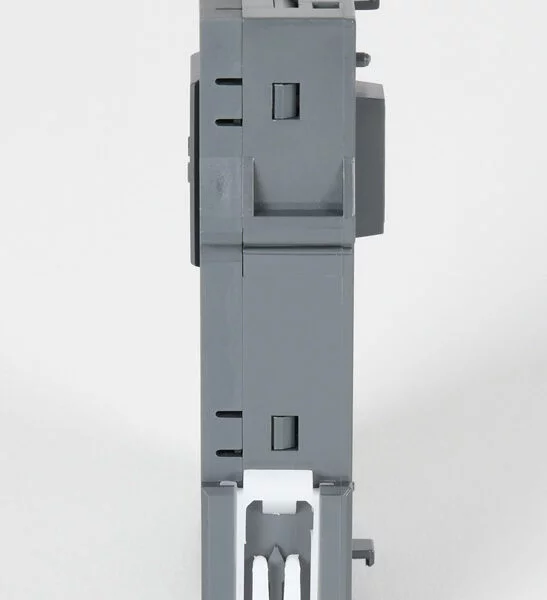

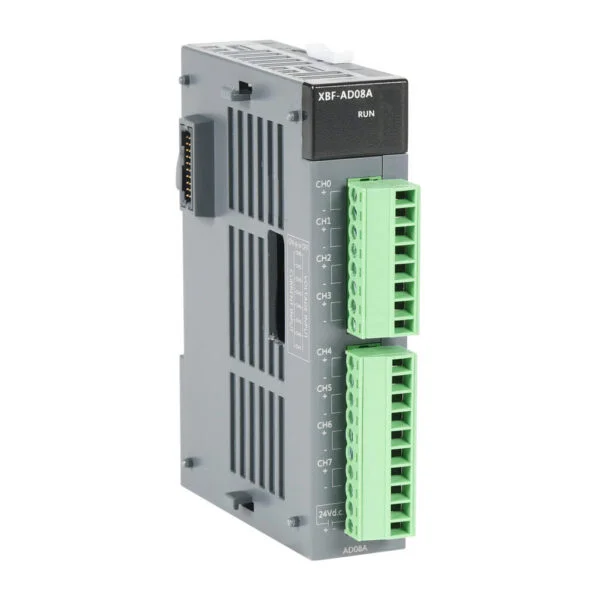

ANALOG INPUT MODULE, 8 CHANNEL, XBF -AD08A, LS ELECTRIC Co. Ltd
ANALOG INPUT MODULE, 8 CHANNEL, XBF -AD08A, LS ELECTRIC Co. Ltd
₹ 34,320.00
ANALOG INPUT MODULE, 8 CHANNEL, XBF -AD08A, LS ELECTRIC Co. Ltd

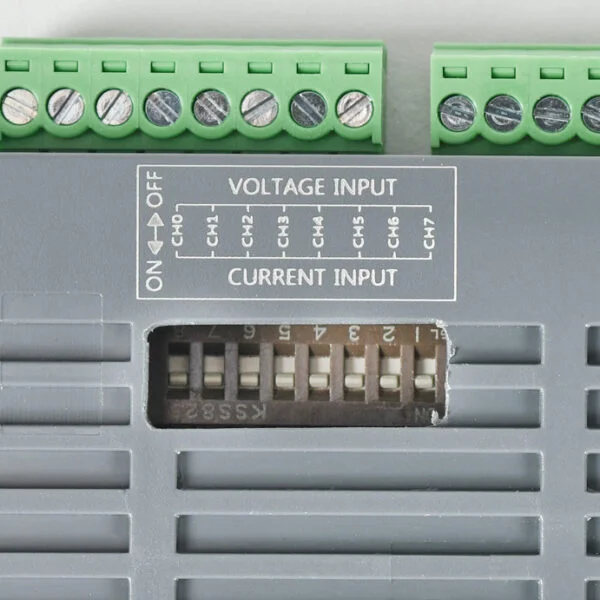

LS Electric XGB analog input module, 8-channel, current/voltage, 12-bit, input current signal range(s) of 0-20 mA, 4-20 mA, input voltage signal range(s) of 0-5 VDC, 1-5 VDC, 0-10 VDC, external 24 VDC required.
Technical Specification:
| Brand | LS Electric XGB | |
| Item | Input module | |
| I/O Module Type | Analog | |
| Number Of Input Channels | 8 | |
| Input Signal Type(s) | Current/voltage | |
| Isolated Channels | No | |
| Input Resolution | 12-bit | |
| Input Current Signal Range | 0-20 mA, 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 1-5 VDC, 0-10 VDC | |
| External Power Requirement | 24 VDC | |
| Includes | Removable terminal block | |
| Programming Software | XG5000 programming software v4.7 or later |
3 in stock
