Description

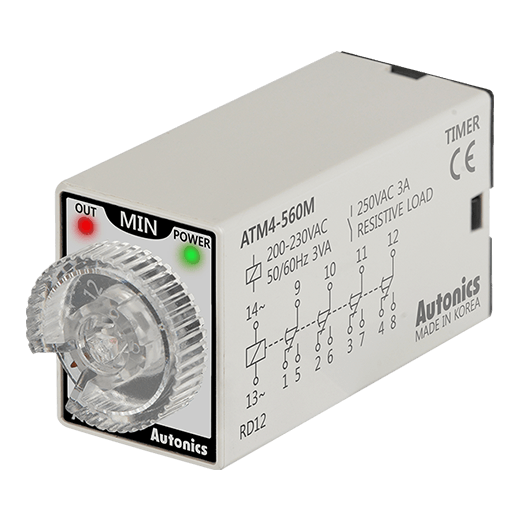

The ATM series miniature analog timers feature compact, space-saving design (W 21.5 x H 28 mm) with a simple 14-pin plug-in socket.
The ATM series is available in 11 different time ranges (0.1 sec to 3 hr) and various power supply options. The timers feature 4PDT contacts, quick reset time of 100 ms, and repeat accuracy of ±0.5% for highly accurate timing control.
| Operation method | Time setting |
|---|---|
| Output Operation | POWER ON DELAY |
| Time operation | POWER ON START |
| Terminal | 14-pin plug |
| Power supply | 220VAC~ |
| Setting range | 6 to 60 min |
| Control output | SPDT (1c): 4 |
| Approval |  |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 48g (approx. 42g) |
