Description

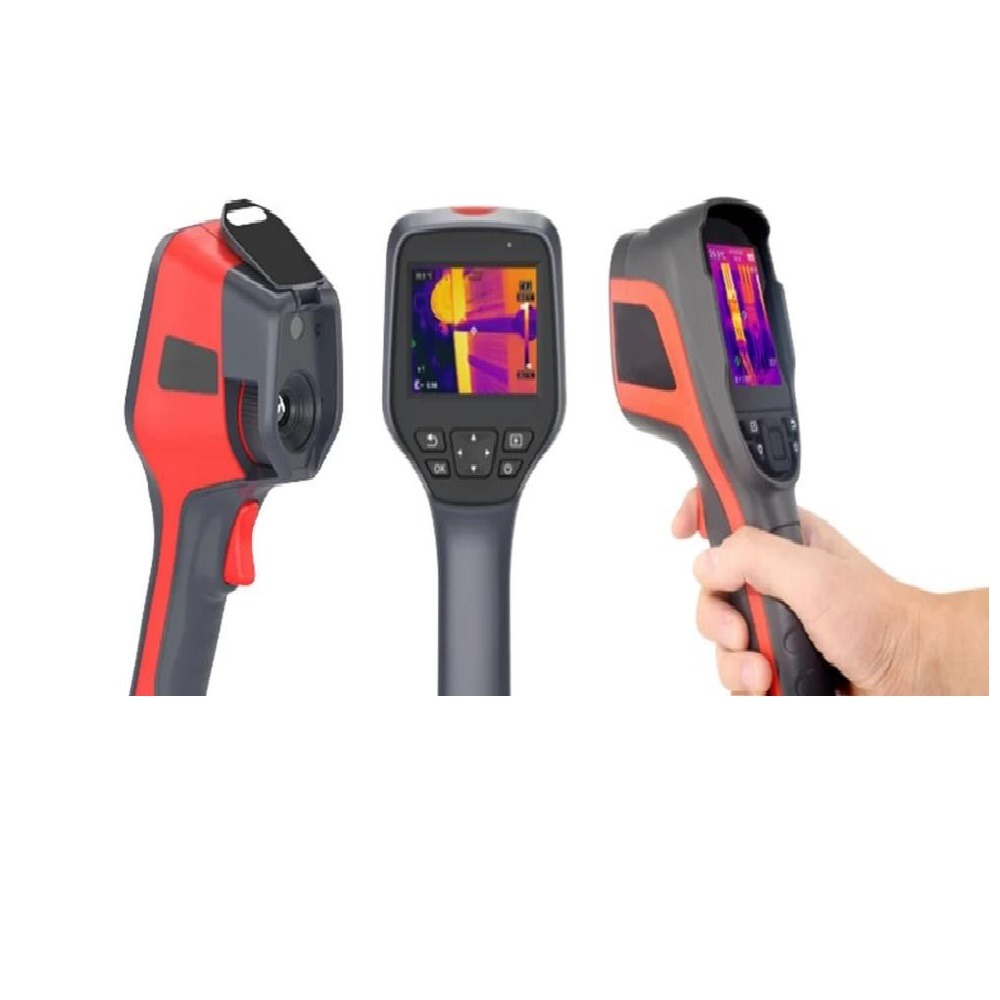

Infrared Thermal Imaging Camera KM-322
The KM-322 Infrared Thermal Imaging Camera is a high-performance handheld thermal imaging camera designed for professional temperature measurement, predictive maintenance, and fault detection. Equipped with a high-resolution 640 × 480 infrared detector and advanced thermal imaging technology, it delivers clear, accurate thermal images for identifying hotspots, electrical faults, mechanical issues, insulation defects, and energy losses. It combines thermal and visible-light imaging for enhanced diagnostics across industrial, electrical, construction, and maintenance applications.
Key Features of KM-321 Thermal Camera
- High-resolution 640 × 480 IR detector for detailed thermal analysis.
- 25 mm F1.0 lens with manual focus for precise imaging.
- Wide temperature measurement range of -20°C to 600°C (extendable up to 1600°C).
- Thermal sensitivity ≤ 50 mK for detecting subtle temperature differences.
- 4.3-inch capacitive touchscreen with 800 × 480 resolution.
- Multiple display modes including thermal, visible light, fusion, and picture-in-picture.
- Built-in 5 MP visible-light camera for enhanced inspection documentation.
- Supports 1× to 8× digital zoom.
- Real-time temperature alarms and multi-area temperature monitoring.
Applications of the KM-322 Thermal Camera
- Electrical panel and switchgear inspections
- Power distribution and transformer monitoring
- Mechanical equipment maintenance
- Building diagnostics and energy audits
- HVAC system inspection
- Industrial process monitoring
- Petrochemical and manufacturing facilities
- Preventive and predictive maintenance programs
Technical Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 640 × 480 |
| Detector Type | Uncooled Microbolometer |
| Spectral Range | 8–14 μm |
| Thermal Sensitivity | ≤ 50 mK |
| Frame Rate | 30 Hz |
| Temperature Range | -20°C to 600°C (up to 1600°C optional) |
| Accuracy | ±2°C or ±2% |
| Display | 4.3″ Touchscreen LCD |
| Visual Camera | 5 MP |
| Digital Zoom | 1×–8× |
| Protection Rating | IP54 |
| Storage | 32 GB |
| Battery | 7.4V Li-ion, up to 8 hours operation |
Multiple Color Palette Options
The KM-322 features multiple color palette options, allowing users to customize thermal image display for enhanced temperature analysis and easier identification of anomalies. Available palettes include White Hot, Black Hot, Iron Red, High Contrast, Red Saturation, and Jet Mode, enabling optimal visualization for electrical inspections, mechanical diagnostics, building surveys, and industrial maintenance applications. These palette selections help improve thermal contrast, highlight critical hotspots, and support accurate fault detection across a wide range of inspection environments.
Benefits of Using the KM-322
The KM-322 Infrared Thermal Imaging Camera combines high-resolution thermal imaging, accurate temperature measurement, and advanced diagnostic features in a rugged, portable design. Built for professionals who require reliable thermal inspections, it helps detect faults early, improve maintenance efficiency, and reduce operational risks.
