Description
Product Description

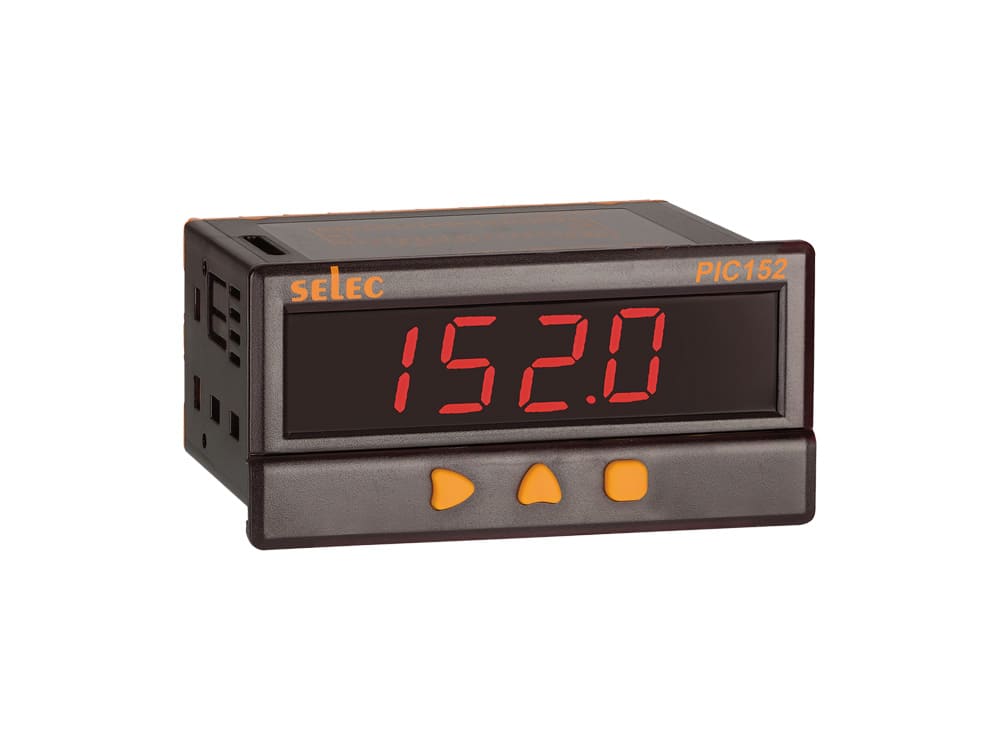

- 4 digit single display process indicator
- Universal input (TC: J, K, T, R, S/ RTD: PT100)
- Signal input: (-5 to 56mV, 0 to 10V DC, 0/4 to 20 mA DC)
- Dual alarm indication
- Re-transmission analog output
- 24V DC @ 30mA sensor supply
- 48 mm x 96 mm size
- Panel mount
- 90 to 270V AC/DC supply voltage
| Display Type | 7 Segment LED single display |
| Display Configuration | 4 digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) Single inputs (DC): -5 to 56mV, 0 to 10V, 0/4 to 20mA |
| Resolution | TC/RTD: 1/0.1°, analog input 1/0.1/0.01/0.001 |
| Accuracy | For TC Inputs: 0.25% of F.S ±1º, For R & S inputs: 0.5% of F.S±2º (20mins of warm up time) For RTD inputs: 0.1% of F.S ±1º, Cold junction accuracy ± 5ºC, Signal input: ±0.5% of F.S, ±1º digit |
| Retransmission | 0-20mA DC / 4-20mA DC / 0-10V DC / 0-5V DC |
| Communication | RS485 MODBUS RTU protocol |
| Alarm Modes | high,low,band,fail output,& fault diagnosis |
| Sensor Supply | 24V DC, 30mA |
| Features | High & Low alarm |
| Sensor Supply | 90 to 270V AC/DC, 24V DC optional |
| Size | 48 x 96mm |
| Mounting Type | Panel Mount |
