Product Description

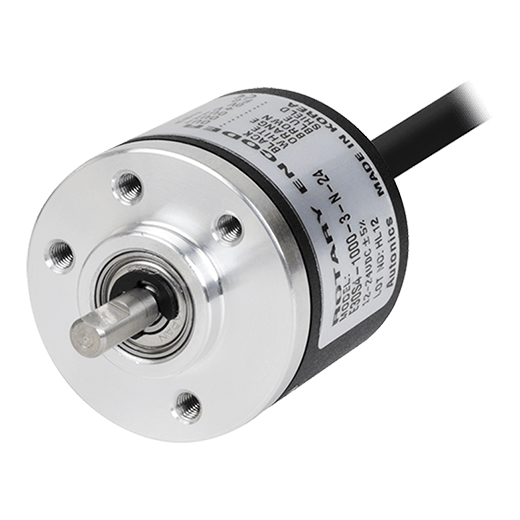

The E30S series incremental rotary encoders feature compact Ø30 mm size housings for easy installation in tight or limited spaces.
The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The encoders are available in various control output options.
| Shaft outer diameter | Ø4mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Approval |  |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø4mm coupling |
| Weight | Approx. 80g |
