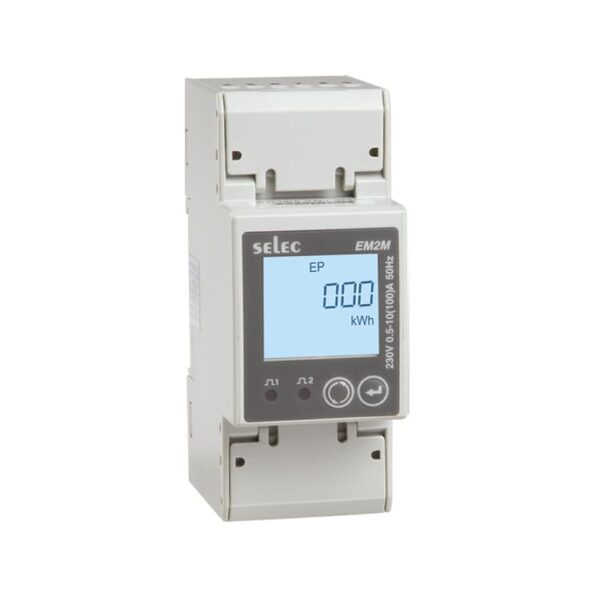

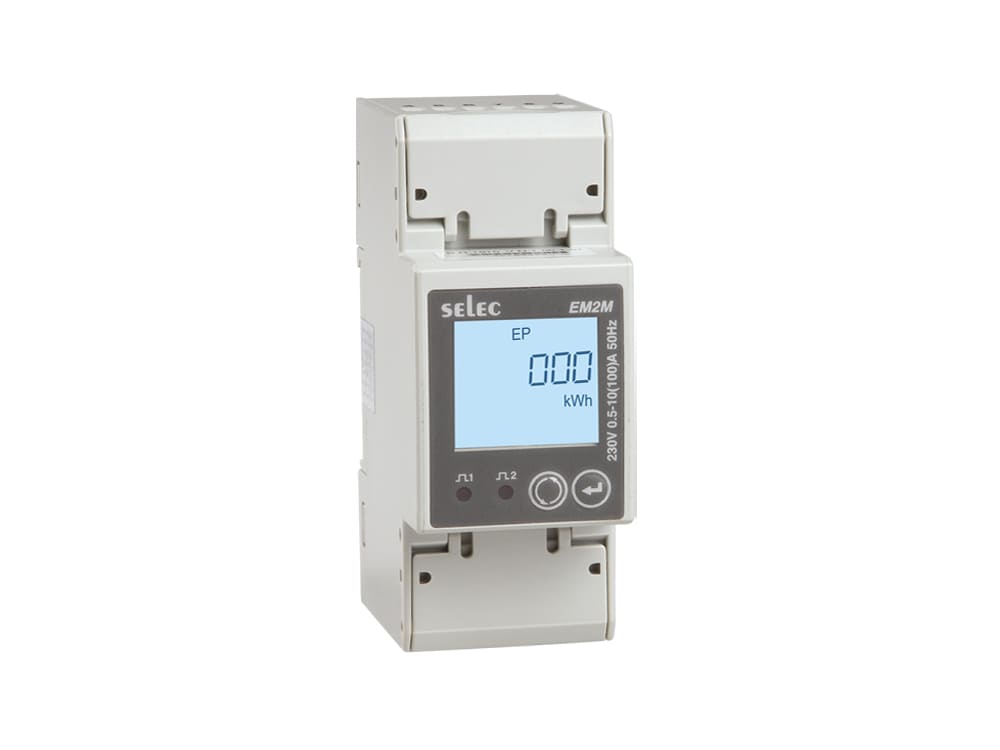

Product Description
- Compatible with 1 phase 2 wire system, Self-Supplied
- 176 to 276V AC measurement.
- Direct current measurement up to 100A
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
- Two pulse outputs configurable for Import/Export Energy measurement
- RS485 Modbus communication, Mbus variant available
- CE, MID Certified
| Display Type | LCD with Backlight |
| Display Configuration | 7 Digits |
| Electrical Connection | 1Ø – 2W |
| Type of Output | Two Pulse Outputs |
| Communication Protocol | RS485 and MODBUS RTU |
| Features | Self Powered, 100A Direct Connection, Bi – directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent) |
| Power Consumption | 8VA Max |
| Input Current Range | 5A AC (Min – 10mA, Max – 100A) |
| Supply Voltage | 176 to 276V AC (Self – Powered), (45 to 65Hz) |
| Mounting Type | Din Rail |
| Size | 35 x 90mm |
| Certification | CE, MID |
