Description

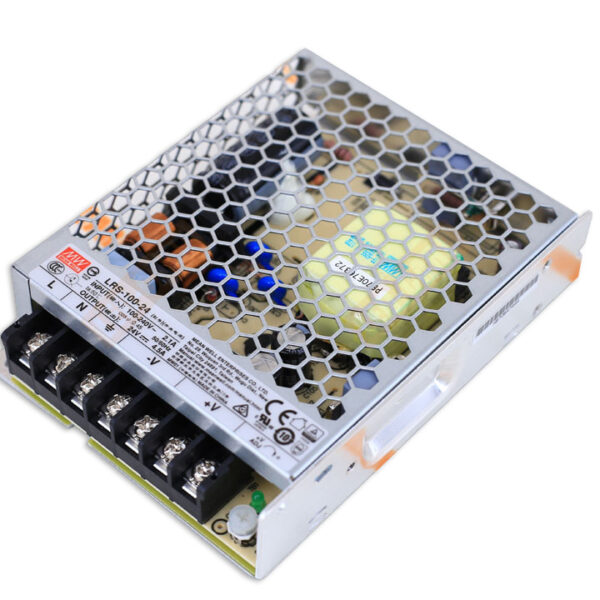

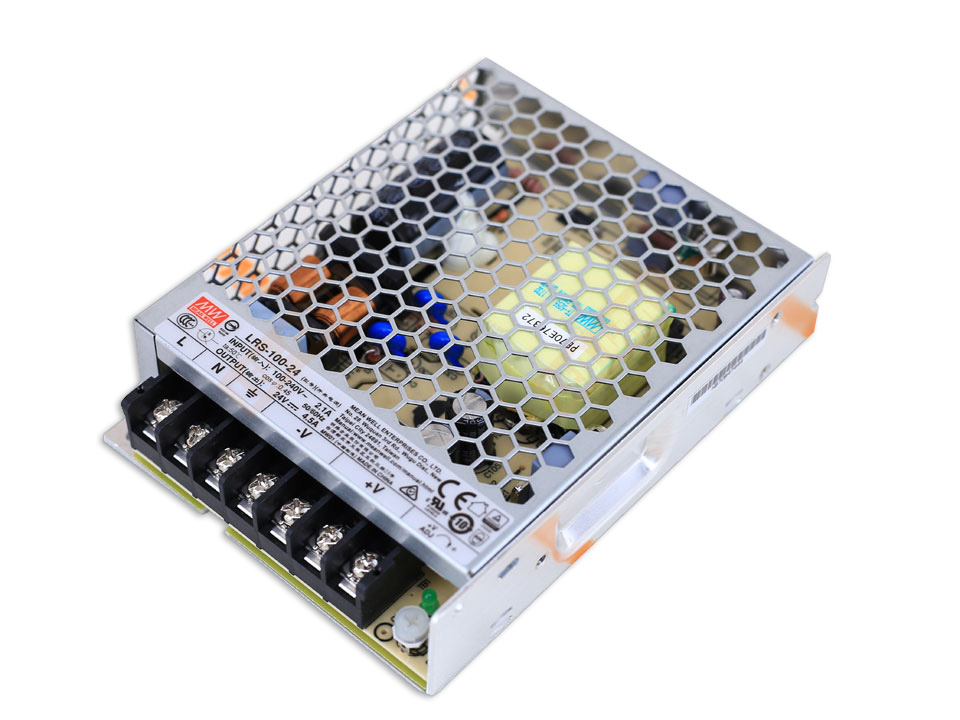

The Mean Well LRS-100-24 is a robust and efficient enclosed AC-DC power supply that delivers a 24V DC output at 4.5A, with a total power capacity of 108 watts. Designed for a wide range of industrial, automation, and LED applications, this unit offers high reliability, energy efficiency, and excellent thermal performance in a compact metal housing.
Key Features:
- Input Voltage: 85–264VAC / 120–373VDC (universal input)
- Output Voltage: 24V DC
- Output Current: 4.5A
- Power Output: 108W
- High Efficiency: Up to 90%
- Low No-Load Power Consumption: <0.3W
- Compact Dimensions: 129 x 97 x 30 mm
- Cooling Method: Convection cooled (fanless design)
- Protections: Short circuit, overload, overvoltage, overtemperature
- Certifications: UL, CE, TUV, EAC, RoHS compliant
Applications:
- Industrial automation systems
- Control panels and machinery
- LED lighting and signage
- Security and surveillance equipment
- Communication devices and instrumentation
With its fanless design for silent operation, wide input range, and full set of safety features, the LRS-100-24 is a dependable and cost-effective choice for both commercial and industrial power needs.
